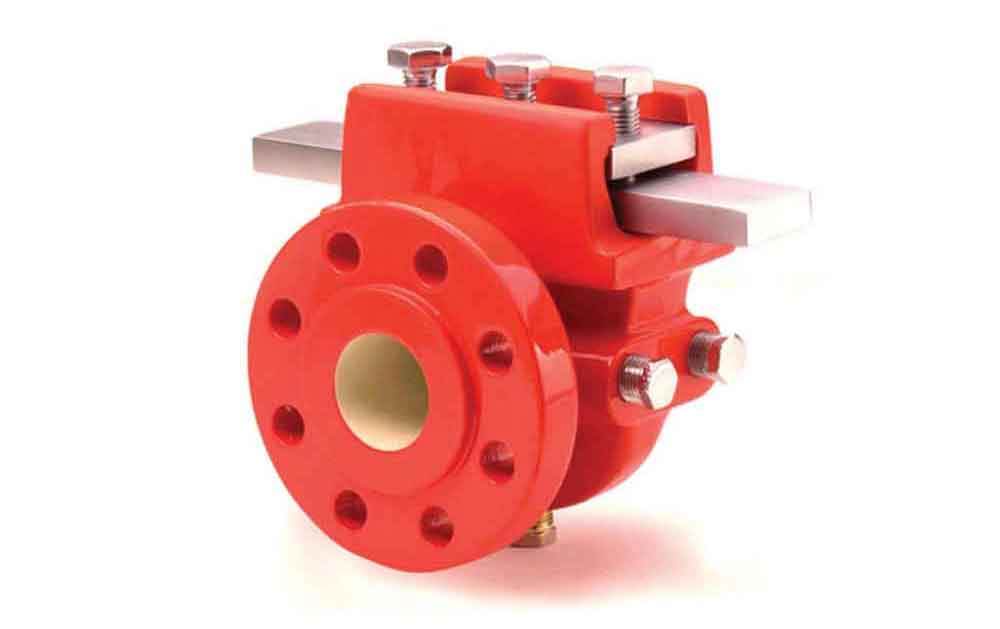

"OrificeMaster" - Single Chamber Orifice Fitting

The OrificeMaster meter houses and accurately positions the orifice plate for differential pressure measurement.
The fittings allow for fast and efficient removal and replacement of the orifice plate without physically removing the meter from the line.
The OrificeMaster utilizes the '590' Integral Plate which is impossible to locate the wrong way to the flow direction.

Key Characteristics

• Horizontal and Vertical installation
• No need to split pipeline flanges to inspect the plate
• Accurate installation and position of the plate

Standards

• ISO 5167-2
• AGA Report Nr.3
