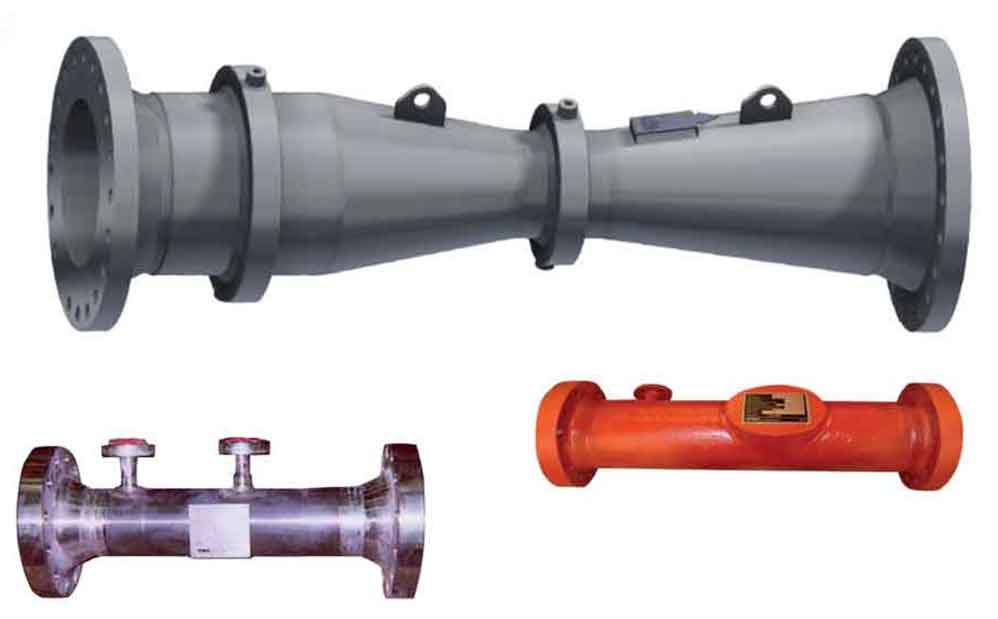

Venturi Tubes

The Venturi Tubes are designed to meet or exceed ASME requirements.
They are extremely versatile for many applications and are extremely useful when considering erosion and pressure recovery restraints.

Types

• Rolled Plate and Fabricated for DN > 10"
• Machined from forged bar for smaller sizes
• Machined from cast

Key Characteristics

• No maintenance required
• Robust Design
• Low Permanent Pressure Loss
• Accurate Flow Measurement

Standards

• ISO 5167-4
• ASME MFC-3M
